60v45ah/100ah Cargo Electic Trike-C-QL150
-
DetailMotor: 60V1200W
Battery: 60V45/100AH
Max speed: 35km/h
L×W×H(mm): 3070×1180×1412-
QL150
-
JINPENG
- Product Description
- Detailed Photos
- FAQ
60v45ah/100ah Cargo Electic Trike
Specification list QL150D1 Optional colors red. blue. green. yellow. grey.silver Vehicle code 91831308 L×W×H(mm) 3070×1180×1412 Cargo Box size(mm) 1500×1100×340 Wheel base(mm) 2066 Wheel track(mm) 952 Minumum ground clearance（mm） ≥150 Minimum turning radius（m） ≤4 Curb weight(kg) 265 Rated load (kg) 400 Max speed（km/h） 35 Grade ability（%） ≤20 Battery 60V45AH-100AH Motor. Controller（w） 60V1200W Range per charging（km） 50-110 Charging time（h） 6～8h Front shock absorber Φ43 Drum shock absorber Rear shock absorber 50×120 Seven pieces leaf spring Front/Rear tyre 110/90-16/4.00-12 Rim type Front/Rear:Steel Front/Rear brake type Front/Rear:Drum Parking brake Hand brake Rear axle structure Integrated rear axle Vehicle lamps Ordinary lamps （48V) CKD/SKD 32 Units/40HQ
15 Units/20GPCKD/SKD with shed 28 Units/40HQ
12 Units/20GPSKD(Steel Frame) 32 Units/40HQ
12 Units/20GPSKD with shed(Steel Frame) 28 Units/40HQ
10 Units/20GP
The QL150D electric cargo tricycle is a reliable and efficient solution for your home goods transportation needs. With dimensions of 3070mm in length. 1180mm in width. and 1412mm in height. it offers ample space for your cargo. The cargo box measures 1500mm by 1100mm by 3400mm. providing enough room to accommodate your belongings.
With a maximum load capacity of 400 kilograms. the QL150D can handle a variety of items. making it suitable for transporting household goods. Whether you need to move furniture. groceries. or other items. this tricycle has got you covered.

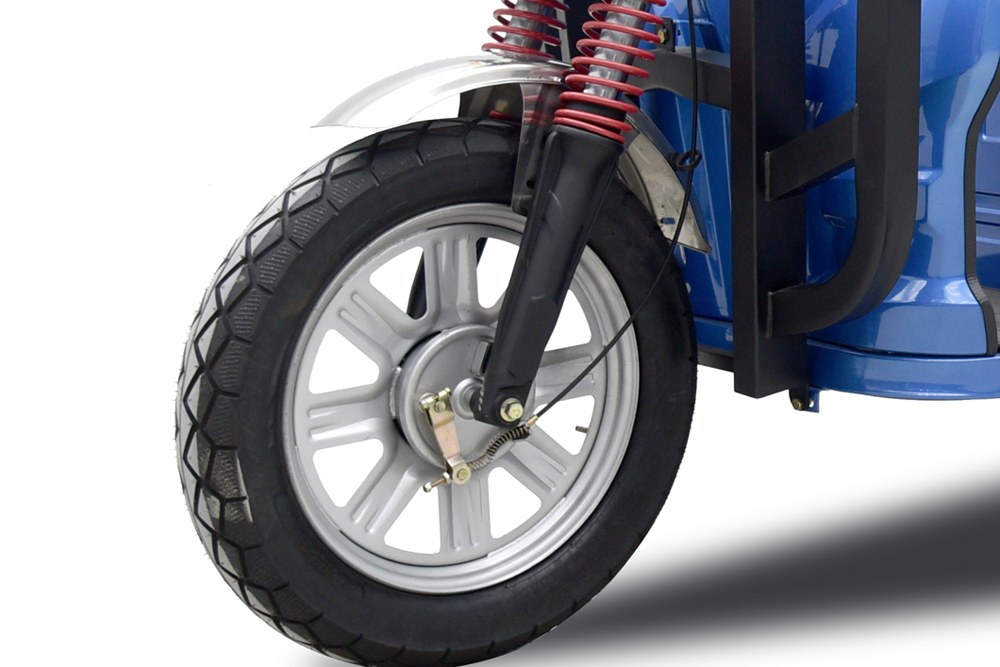

To ensure a smooth and comfortable ride. the QL150D is equipped with a Φ43 drum shock absorber in the front and a 50×120 seven-piece leaf spring in the rear. These suspension systems effectively absorb shocks and vibrations. providing a stable and enjoyable driving experience even on bumpy roads.
For enhanced safety. the QL150D is equipped with front and rear drum brakes. These brakes offer reliable stopping power. ensuring safe and efficient operation of the tricycle.
In summary. the QL150D electric cargo tricycle is a versatile and reliable option for your home goods transportation needs. With its spacious cargo box. impressive load capacity. and advanced suspension and braking systems. it provides a safe and comfortable solution for transporting your belongings.
1. Q: Can I get some samples?
Re: We are honored to offer you samples for quality check.2. Q: Do you have the products in stock?
Re: No. All products are to be produced according to your order including samples.3. Q: What's the delivery time?
Re: It usually takes about 25 working days to produce an order from MOQ to a 40HQ container. But the exact delivery time might be different for different orders or at different times.4. Q: Can I mix different models in one container?
Re: Yes. different models can be mixed in one container. but the quantity of each model should not be less than MOQ.5. Q: How does your factory do regarding quality control?
Re: Quality is a priority. We always attach great importance to quality control from the very beginning to the end of production. Every product will be fully assembled and carefully tested before it's packed for shipment.6. Q: Do you have after-sale service? What's the after-sale service?
Re: We have oversea after-sale service file for your reference. Please consult the sales manager if needed.7. Q: Will you deliver the right goods as ordered? How can I trust you?
Re: Yes. we will. The core of our company culture is honesty and credit. Jinpeng has become a trusted partner of dealers since its establishment.8. Q: What is your payment?
Re: TT. LC.9. Q: What are your shipping terms?
Re: EXW. FOB. CNF. CIF.
-
